QUBIC SYSTEM QS-S25 SPIDER
QS-S25
The QS-S25 is an advanced motion cockpit, designed for the most demanding racers who are looking for a professional simulation experience on high top level. The motion system based on patent pending linear actuator’s technology allows a much stronger sensation range such as under steer, loss of grip or overloading during brake clearly blurring the difference between reality and virtual environment. Due to the combination of dedicated accessories and the QubicManager software, the 6DoF motion platform provides drivers with an extreme experience like in a real race or during the ultimate flights.
€31,000.00 (συμπ. ΦΠΑ)
Παράδοση:
Παράδοση 2-3 εβδομάδεςΠεριγραφή
The original machine’s design based on modular and reconfigurable sets of actuators can be used in various racing or flight applications. Compact design and small footprint fits to the medium size gaming rooms, VR centers, and training facilities for professional drivers.
The platform is compatible with the selected Virtual Reality headsets on the market, which makes QS-S25 open to a new possibility in combining technologies. QubicManager uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform motions from the VR tracking system, causing your experiences to be more immersive and authentic.
Check also the wide range of additional mounting brackets and add-ons for building full motion racing and flight simulators.
*Price refers to QS-S25 set of motion platform only. Price does not contain peripherals like: PC computer, manipulators, game or simulation software, add-ons, accessories and mounting brackets.

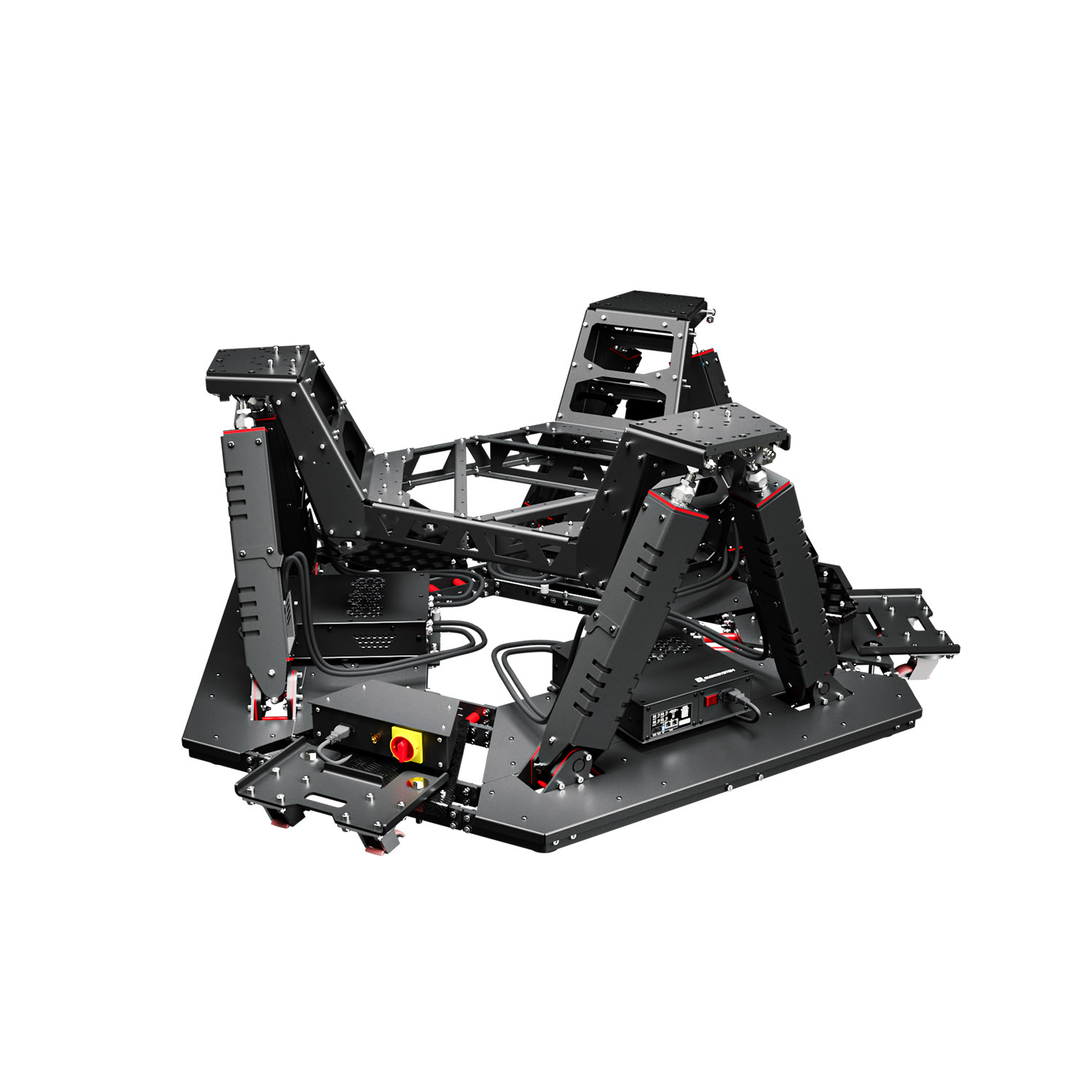

QS-S25 MOTION SYSTEM (6DOF)

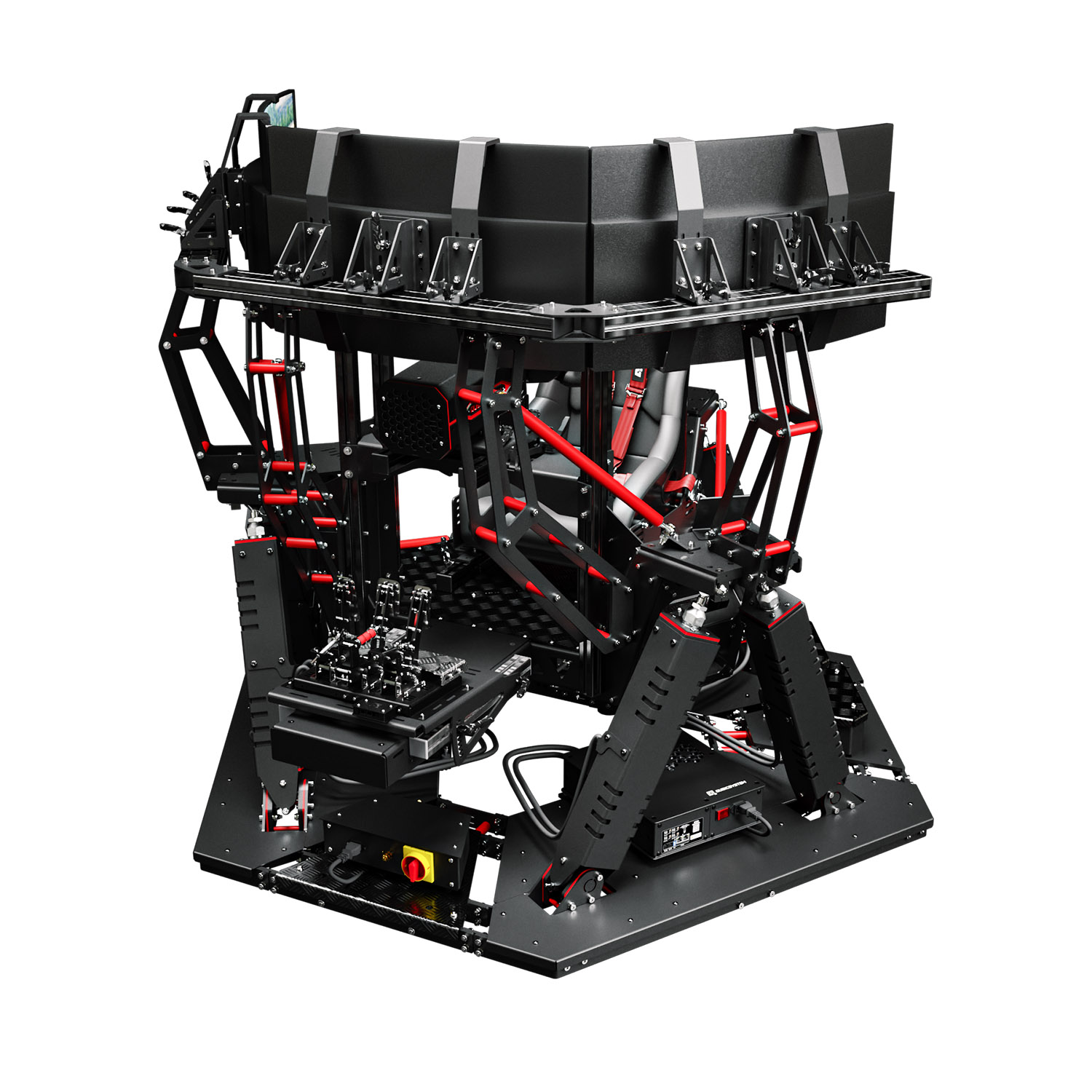

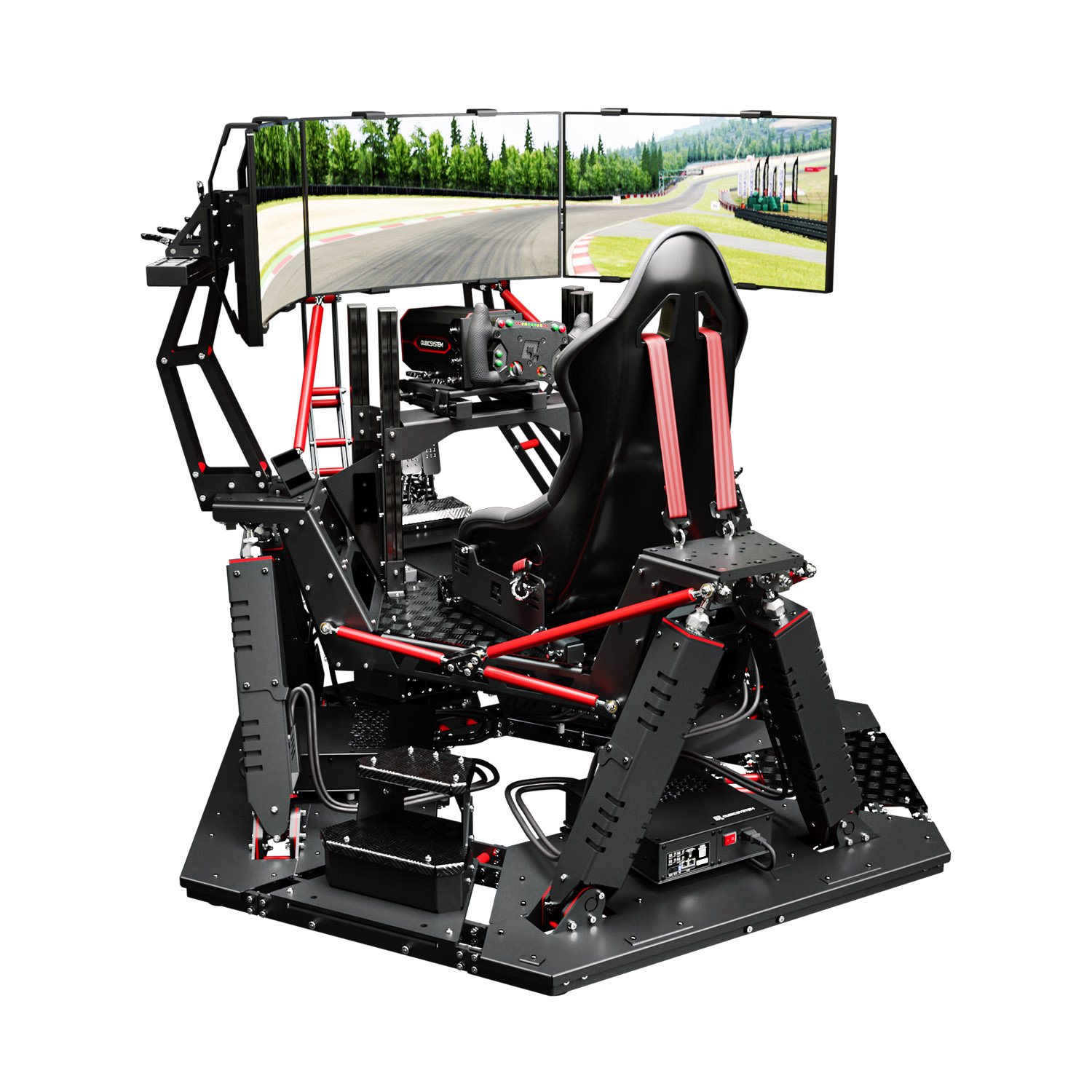

QS-S25 COCKPIT SET
QS-S25 – MOUNTING BRACKET 3x MONITORS
USE-CASE EXAMPLE
Software Compatibility
Choose the software based on your primary motion platform family.
| Motion platform model | Qubic Manager | ForceSeatPM | Next Level Racing ® Platform Manager |
|---|---|---|---|
| QS-BT1 | |||
| QS-210 | |||
| QS-220 | |||
| QS-CH2 | |||
| QS-S25 | |||
| QS-V20 | |||
| PS-6TM-xxx | |||
| PS-6TL-xxx | |||
| PS-3TM-xxx | |||
| PS-2RM-xxx | |||
| Next Level Racing ® Motion V3 | |||
| Next Level Racing ® Motion Plus | |||
| Next Level Racing ® Traction Plus | |||
| No motion | |||
| 3rd party motion & peripherals |
[1] ForceSeatPM will also work but it is recommended to use Qubic Manager.[2] QubicManager runs parallel to your software (e.g., SimHub, Sim Racing Studio, SimTools) and does not interfere with its operation.”
Key Features
- Used by professional race car drivers and pilots around the world
- Proudly made in EU: Engineered, Designed and Manufactured in Poland
- Top quality ecosystem for personal and commercial applications
- Supported by dedicated software QubicManager
- VR HeadWay technology support (VR sickness compensation)
- Over 80+ integrated and supported racing and flight games
- Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers
- Easy for transport: assembly on site from the main components
- Easy to adapt to 3rd party cockpits
What’s Included
The QS-S25 is transported in a specially adapted transport box.
Box dimensions: 190 cm x 190 cm x 128 cm/ 74,8 in x 74,8 in x 50,4 in
WHAT’S IN THE BOX
- QS-S25 Motion Platform
- ForceSeatPM Platform Manager software download
- USB and power cables
- Nuts and Bolts required for assembly
- Product Manual
Technical Specification
GENERAL SPECIFICATION
Architecture: 6DOF
Payload (heavy duty mode) 250 kg | 551 lb (basic QS-S25 – no accessories)
Payload (performance mode) 150 kg | 330 lb (basic QS-S25 – no accessories)
Product weight: 350 kg | 772 lb
Total width: 1701 mm | 66.97 in
Total length: 1603 mm | 63.11 in
Min height: 769 mm | 30.27 in
POWER REQUIREMENTS
Power supply requirements: 230V 50-60HZ
Average power (Watts): 199
Average power (VA): 1300
Peak Current (A): 11
Power supply requirements: 120V 50-60HZ
Average power (Watts): 238
Average power (VA): 900
Peak Current (A): 13
Software & Manual
Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.
Below you can find the user manual, software, and a list of supported games.
